#Throttle III# Throttle III/Pad VII tablet log collection

 Steps

>Setting>System>About Device>Click 5 times "Build number"

>Setting>System>Developer Options>Turn on "USB debugging"

>Open Calculator> input "!^!^3646633^!^!"


>Slide left 4 times

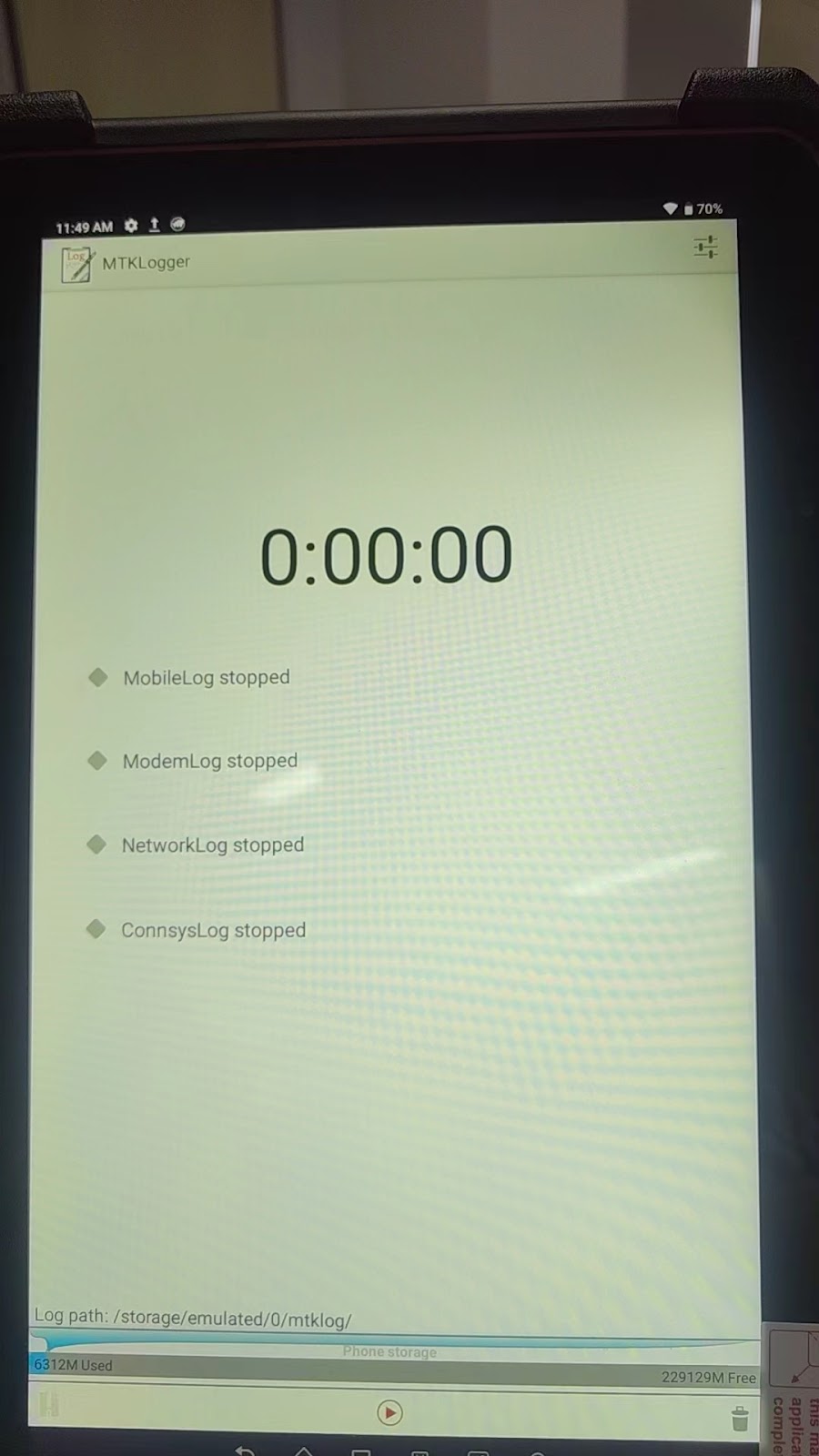

>Select MTKLogger

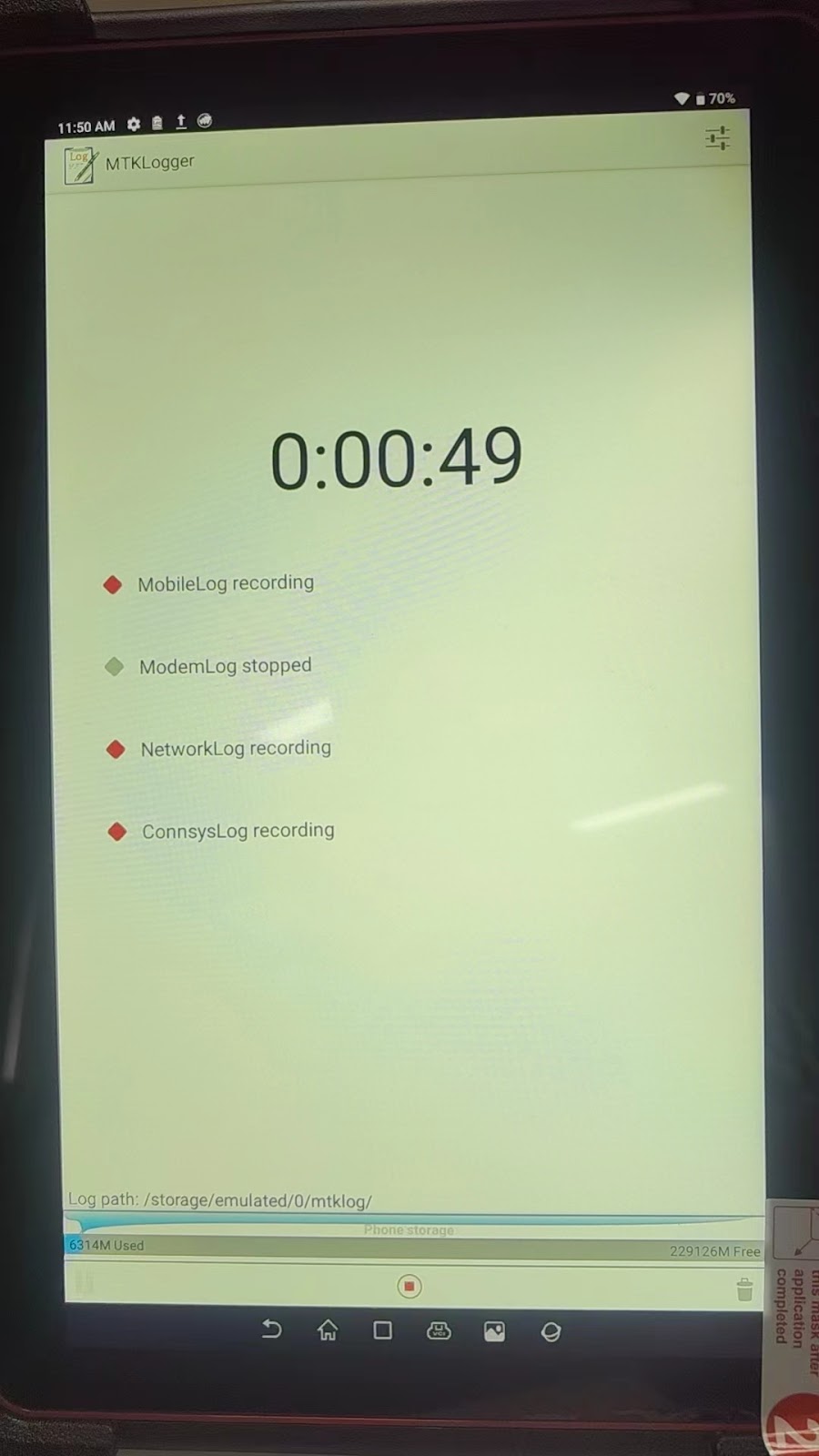

>Click the bottom red triangle button to start log collection



> Start repeating the bug and then switch back to log collection software, click the bottom square to stop log collection.


>Home page>ES File Explorer

>Find "mtklog" folder and then copy this folder to a flash drive and send it to the engineer.
